XHRL12620W
更新：2017-08-02 16:43:22 点击：
XHRL12620W电池是专为高倍率放电的应用。待机使用寿命可达10年。
公开价：2025 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 620.0W@ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F) |
| 重量(kg) | Approx. 47.2 Kg (104.03 lbs) |
| 最大放电电流5秒(A) | 800A (5sec) |
| 内阻(mΩ) | Approx. 2.40 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃ (5°F~122°F) Charge：-15℃~40℃ (5°F~104°F) Storage：-15℃~40℃ (5°F~104°F) |
| 一般使用温度工作范围 | 25°C±3°C (77°F±5°F) |
| 浮充电压 | 13.5 to 13.8 VDC/Unit Average at 25°C(77°F) |
| 建议充电最大电流 | 62 A |
| 均充电压 | 14.4 to 15.0 VDC/Unit Average at 25°C(77°F) |
| 自放电 | Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉) |
| 端子 | I2 thread lead alloy terminal to accept M6 bolt |
| 电槽组材质 | Flame Retardant Polypropylene (UL 94-V0) |
|
|

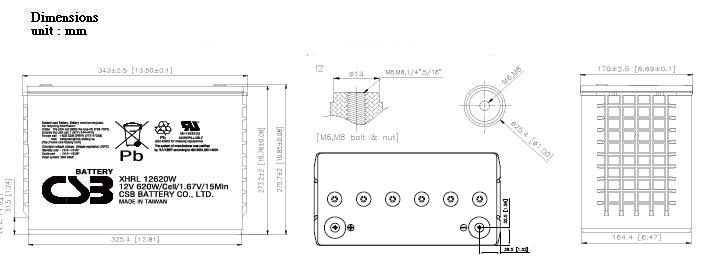

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 766.00 | 641.00 | 571.00 | 504.00 | 458.00 | 349.00 | 283.00 | 206.00 | 116.00 | 81.70 |
| 1.67V | 660.00 | 585.00 | 511.00 | 466.00 | 420.00 | 326.00 | 273.00 | 200.00 | 114.00 | 79.80 |
| 1.70V | 622.00 | 545.00 | 486.00 | 448.00 | 398.00 | 315.00 | 267.00 | 196.00 | 113.00 | 78.30 |
| 1.75V | 553.00 | 485.00 | 449.00 | 398.00 | 356.00 | 293.00 | 252.00 | 188.00 | 110.00 | 78.20 |
| 1.80V | 494.00 | 443.00 | 383.00 | 344.00 | 315.00 | 270.00 | 229.00 | 175.00 | 106.00 | 75.60 |
| 1.85V | 437.00 | 360.00 | 322.00 | 298.00 | 280.00 | 239.00 | 201.00 | 158.00 | 97.90 | 71.10 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN | 2MIN | 4MIN | 6MIN |
| 1.60V | 5280.00 | 4692.00 | 3770.00 | 3108.00 | 2304.00 | 1344.00 | 966.00 | 7070.00 | 6088.00 | 5529.00 |
| 1.67V | 4894.00 | 4387.00 | 3720.00 | 2983.00 | 2249.00 | 1329.00 | 959.00 | 6439.00 | 5680.00 | 5432.00 |
| 1.70V | 4692.00 | 4262.00 | 3540.00 | 2918.00 | 2222.00 | 1325.00 | 957.00 | 6090.00 | 5494.00 | 5336.00 |
| 1.75V | 4311.00 | 3969.00 | 3282.00 | 2742.00 | 2135.00 | 1293.00 | 944.00 | 5579.00 | 5208.00 | 4825.00 |
| 1.80V | 3894.00 | 3639.00 | 2956.00 | 2515.00 | 2017.00 | 1247.00 | 916.00 | 5235.00 | 4660.00 | 4246.00 |
| 1.85V | 3470.00 | 3120.00 | 2576.00 | 2257.00 | 1864.00 | 1163.00 | 867.00 | 4134.00 | 3765.00 | 3674.00 |
下载专区 :XHRL12620W 规格书
