HRL12110W
更新：2017-07-18 14:21:30 点击：
HRL12110W是专为高效放电、寿命长的应用。它具有体积小、重量轻、放电效率高等特点。可循环使用260次以上，循环使用100%次，备用期可达8年。
公开价：860 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 110@15 minute-rate to 1.67V per cell @25℃ (77°F) |
| 重量(kg) | Approx. 9.9kg (21.82 lbs) |
| 最大放电电流5秒(A) | 225A (5sec) |
| 内阻(mΩ) | Approx. 8.1mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25℃±3℃ (77°F±5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25℃ (77°F) |
| 建议充电最大电流 | 11A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/Unit Average at 25℃(77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | I1-Thread lead alloy recessed terminal to accept M5 bolt |
| 电槽组材质 | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
|
|

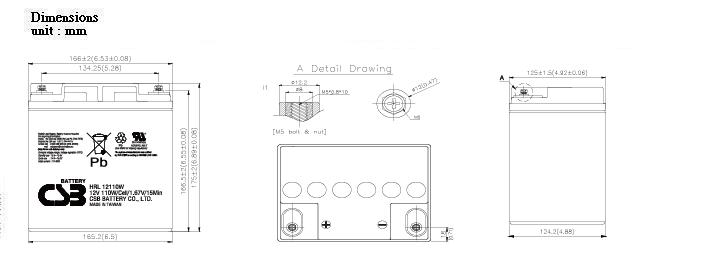

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 170.00 | 145.00 | 118.00 | 97.50 | 81.60 | 61.40 | 48.00 | 33.60 | 21.30 | 14.90 |
| 1.67V | 151.00 | 129.00 | 108.00 | 91.10 | 77.50 | 59.60 | 47.00 | 33.20 | 20.80 | 14.70 |
| 1.70V | 141.00 | 121.00 | 103.00 | 88.30 | 75.70 | 58.60 | 46.30 | 32.70 | 20.40 | 14.50 |
| 1.75V | 125.00 | 108.00 | 93.20 | 82.70 | 72.20 | 56.10 | 44.70 | 32.30 | 20.00 | 14.40 |
| 1.80V | 109.00 | 94.00 | 83.70 | 76.40 | 68.70 | 53.70 | 42.50 | 31.90 | 19.60 | 14.20 |
| 1.85V | 89.30 | 78.70 | 73.60 | 69.20 | 64.40 | 51.00 | 40.80 | 29.70 | 18.30 | 14.00 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 1806.00 | 1541.00 | 1270.00 | 1053.00 | 888.00 | 682.00 | 554.00 | 385.00 | 247.00 | 174.00 |
| 1.67V | 1624.00 | 1386.00 | 1171.00 | 988.00 | 852.00 | 665.00 | 535.00 | 377.00 | 243.00 | 173.00 |
| 1.70V | 1530.00 | 1316.00 | 1107.00 | 956.00 | 827.00 | 655.00 | 526.00 | 372.00 | 239.00 | 171.00 |
| 1.75V | 1358.00 | 1190.00 | 1020.00 | 900.00 | 796.00 | 636.00 | 510.00 | 361.00 | 234.00 | 170.00 |
| 1.80V | 1177.00 | 1054.00 | 941.00 | 851.00 | 764.00 | 610.00 | 495.00 | 352.00 | 229.00 | 168.00 |
| 1.85V | 995.00 | 918.00 | 854.00 | 793.00 | 733.00 | 589.00 | 478.00 | 337.00 | 217.00 | 167.00 |
下载专区 :HRL12110W 规格书
