HRL12540W
更新：2017-07-18 14:42:24 点击：
HRL12540W是专为高效放电、寿命长的应用。它具有体积小、重量轻、放电效率高等特点。可循环使用260次以上，循环使用100%次，备用期可达8年。
公开价：2830 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 540W @15 minute-rate to 1.67V per cell @25℃ (77°F) |
| 重量(kg) | Approx.43.9 kg(96.76 lbs) |
| 最大放电电流5秒(A) | 800A(5sec) |
| 内阻(mΩ) | Approx. 2.6 mΩ |
| 温度工作范围 | Discharge: -15℃ ~50℃ ( 5°F ~122°F ) Charge: -15℃ ~40℃ ( 5°F ~104°F ) Storage: -15℃ ~40℃ ( 5°F ~104°F ) |
| 一般使用温度工作范围 | 25℃±3℃ (77°F±5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25℃ (77°F ) |
| 建议充电最大电流 | 54A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/unit Average at 25℃ (77°F ) |
| 自放电 | CSB Batteries can be stored for more than 6 months at 25℃ (77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter. |
| 端子 | I2-Thread lead alloy recessed terminal to accept M6 bolt |
| 电槽组材质 | Polypropylene(UL94-V0)*Flammability resistance can be available upon request. |
|
|

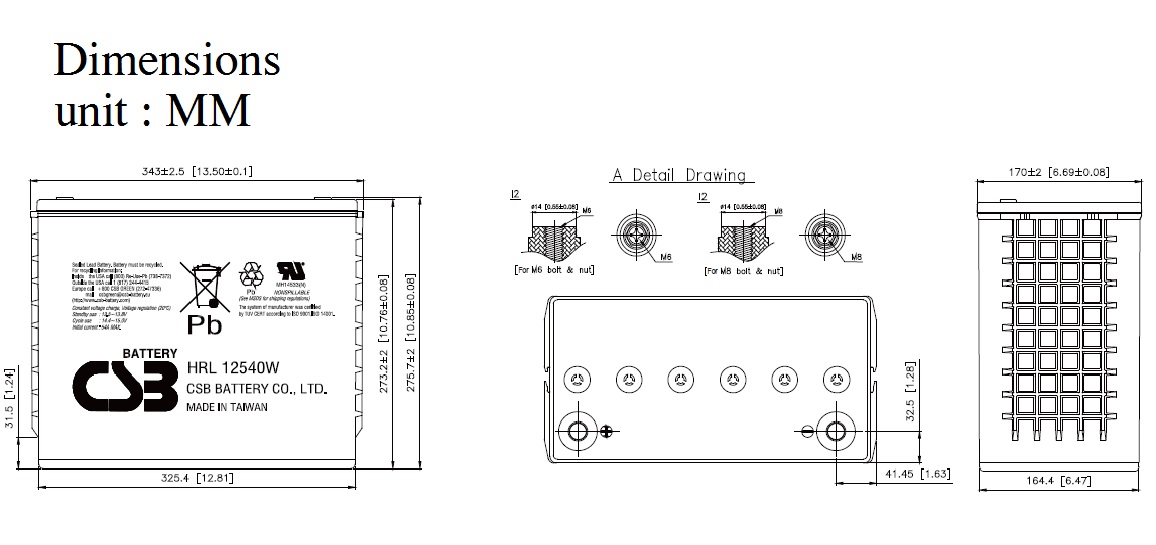

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 720.00 | 572.00 | 498.00 | 436.00 | 394.00 | 308.00 | 256.00 | 187.00 | 106.00 | 75.50 |
| 1.67V | 608.00 | 517.00 | 452.00 | 406.00 | 370.00 | 294.00 | 245.00 | 181.00 | 105.00 | 74.30 |
| 1.70V | 564.00 | 493.00 | 430.00 | 392.00 | 354.00 | 286.00 | 240.00 | 178.00 | 103.00 | 73.80 |
| 1.75V | 501.00 | 440.00 | 398.00 | 365.00 | 327.00 | 270.00 | 228.00 | 172.00 | 101.00 | 72.00 |
| 1.80V | 430.00 | 391.00 | 362.00 | 323.00 | 296.00 | 252.00 | 209.00 | 161.00 | 97.90 | 70.30 |
| 1.85V | 379.00 | 340.00 | 304.00 | 282.00 | 265.00 | 222.00 | 187.00 | 147.00 | 90.30 | 66.20 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 6874.00 | 5883.00 | 5176.00 | 4688.00 | 4186.00 | 3421.00 | 2716.00 | 2057.00 | 1224.00 | 885.00 |
| 1.67V | 6207.00 | 5325.00 | 4794.00 | 4282.00 | 3885.00 | 3250.00 | 2630.00 | 2006.00 | 1210.00 | 865.00 |
| 1.70V | 5768.00 | 4937.00 | 4544.00 | 4016.00 | 3661.00 | 3097.00 | 2564.00 | 1988.00 | 1201.00 | 863.00 |
| 1.75V | 5225.00 | 4639.00 | 4196.00 | 3766.00 | 3472.00 | 2951.00 | 2454.00 | 1925.00 | 1174.00 | 849.00 |
| 1.80V | 4561.00 | 4310.00 | 3818.00 | 3442.00 | 3233.00 | 2723.00 | 2306.00 | 1846.00 | 1129.00 | 824.00 |
| 1.85V | 4227.00 | 3643.00 | 3356.00 | 3146.00 | 3010.00 | 2443.00 | 2104.00 | 1715.00 | 1061.00 | 784.00 |
下载专区 :HRL12540W 规格书
