HR1290W
更新：2017-07-18 13:32:36 点击：
HR1290W是专为高效放电中的应用。其特点是体积小、重量轻、放电效率高。它可用于260个周期的100%放电在循环服务，或三至五年的备用服务。
公开价：900 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 90 W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F) |
| 重量(kg) | Approx. 6.80 kg. (14.99 lbs.) |
| 最大放电电流5秒(A) | 300A (5sec.) |
| 内阻(mΩ) | Approx. 9.9 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25°C ± 3°C (77°F ± 5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| 建议充电最大电流 | 9 A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | I1-Thread lead alloy recessed terminal to accept M5 bolt |
| 电槽组材质 | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
|
|

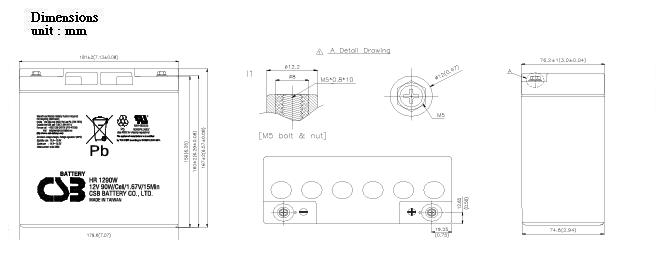

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 177.00 | 124.00 | 95.80 | 79.40 | 68.00 | 48.70 | 38.40 | 27.30 | 15.80 | 11.50 |
| 1.67V | 156.00 | 114.00 | 90.20 | 77.60 | 65.20 | 48.40 | 38.10 | 27.00 | 15.70 | 11.40 |
| 1.70V | 147.00 | 109.00 | 87.80 | 76.40 | 63.90 | 47.60 | 37.70 | 26.90 | 15.60 | 11.30 |
| 1.75V | 131.00 | 102.00 | 82.90 | 72.80 | 61.10 | 46.20 | 37.00 | 26.30 | 15.50 | 11.20 |
| 1.80V | 115.00 | 92.50 | 77.20 | 67.70 | 58.00 | 44.00 | 35.50 | 25.50 | 15.20 | 11.10 |
| 1.85V | 98.60 | 82.90 | 70.80 | 60.80 | 53.30 | 40.70 | 32.60 | 23.80 | 14.50 | 10.60 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 1701.00 | 1282.00 | 1041.00 | 868.00 | 753.00 | 544.00 | 429.00 | 309.00 | 183.00 | 133.00 |
| 1.67V | 1570.00 | 1193.00 | 989.00 | 850.00 | 734.00 | 540.00 | 428.00 | 307.00 | 182.00 | 132.00 |
| 1.70V | 1509.00 | 1155.00 | 962.00 | 838.00 | 726.00 | 534.00 | 426.00 | 305.00 | 181.00 | 131.00 |
| 1.75V | 1398.00 | 1087.00 | 913.00 | 802.00 | 704.00 | 520.00 | 416.00 | 300.00 | 179.00 | 130.00 |
| 1.80V | 1282.00 | 1011.00 | 862.00 | 756.00 | 665.00 | 501.00 | 402.00 | 295.00 | 177.00 | 129.00 |
| 1.85V | 1166.00 | 926.00 | 797.00 | 687.00 | 608.00 | 461.00 | 375.00 | 277.00 | 168.00 | 124.00 |
下载专区 :HR1290W 规格书
