GPL12880
更新：2017-07-18 12:36:03 点击：
GPL12880是一种通用电池，在25°C（77°F）的正常浮充下使用寿命可达8年。
正如所有的CSB电池都可充电，高效、防泄漏、免维护。
公开价：3960 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 94Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F) |
| 重量(kg) | Approx. 29.7kg. (65.46 lbs.) |
| 最大放电电流5秒(A) | 800A (5 sec.) |
| 内阻(mΩ) | Approx. 3.6 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25°C ± 3°C (77°F ± 5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| 建议充电最大电流 | 26.4A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | I2-Thread lead alloy recessed terminal to accept M6 bolt |
| 电槽组材质 | Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
|
|

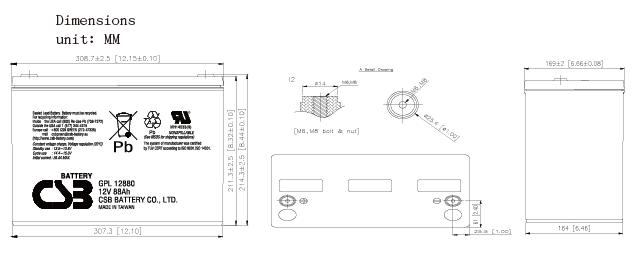

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 3HR | 5HR | 8HR | 10HR | 20HR | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR |
| 1.60V | 25.60 | 17.00 | 11.30 | 9.21 | 4.87 | 349.00 | 232.00 | 175.00 | 103.00 | 62.80 | 45.50 | 36.30 |
| 1.67V | 25.50 | 16.90 | 11.20 | 9.12 | 4.84 | 321.00 | 225.00 | 171.00 | 102.00 | 62.40 | 45.20 | 36.00 |
| 1.70V | 25.20 | 16.80 | 11.10 | 9.10 | 4.83 | 311.00 | 219.00 | 169.00 | 101.00 | 61.40 | 44.80 | 35.70 |
| 1.75V | 25.10 | 16.60 | 11.00 | 8.96 | 4.74 | 274.00 | 199.00 | 163.00 | 99.00 | 60.30 | 43.90 | 35.10 |
| 1.80V | 24.60 | 16.20 | 10.80 | 8.85 | 4.66 | 246.00 | 186.00 | 154.00 | 96.10 | 58.80 | 43.10 | 34.60 |
| 1.85V | 23.80 | 15.80 | 10.40 | 8.51 | 4.48 | 215.00 | 170.00 | 138.00 | 90.30 | 55.80 | 41.00 | 32.90 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 3535.00 | 2496.00 | 1941.00 | 1177.00 | 720.00 | 535.00 | 434.00 | 306.00 | 203.00 | 136.00 | 110.00 | 58.30 |
| 1.67V | 3307.00 | 2417.00 | 1919.00 | 1169.00 | 719.00 | 531.00 | 428.00 | 305.00 | 202.00 | 135.00 | 109.00 | 57.90 |
| 1.70V | 3202.00 | 2373.00 | 1888.00 | 1166.00 | 716.00 | 529.00 | 426.00 | 304.00 | 201.00 | 134.00 | 108.00 | 57.80 |
| 1.75V | 2995.00 | 2261.00 | 1828.00 | 1145.00 | 707.00 | 524.00 | 424.00 | 301.00 | 200.00 | 132.00 | 107.00 | 57.50 |
| 1.80V | 2782.00 | 2129.00 | 1734.00 | 1113.00 | 694.00 | 516.00 | 418.00 | 298.00 | 198.00 | 130.00 | 106.00 | 57.10 |
| 1.85V | 2434.00 | 1955.00 | 1581.00 | 1061.00 | 671.00 | 495.00 | 400.00 | 287.00 | 190.00 | 125.00 | 103.00 | 55.30 |
下载专区 :GPL12880 规格书
